Air Operated Double Diaphragm Pump Accessories

AODD PUMP ACCESSORIES

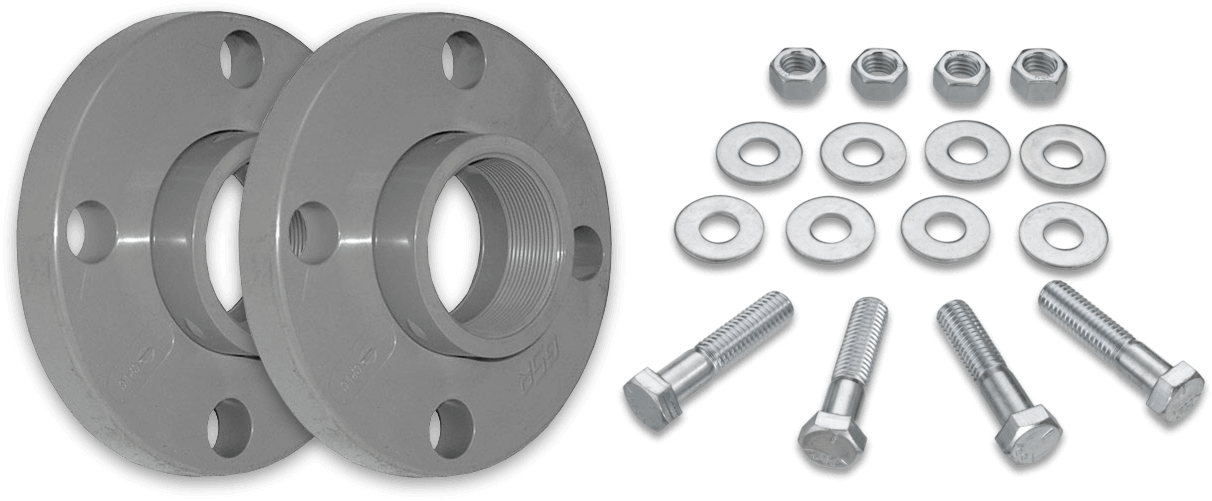

Van Stone Mating Flange Kits

Wilden offers ANSI to NPT mating flange kits available in PVC and CPVC construction.  Each kit includes flange gaskets and 304SS hardware.

  PART #
    DESCRIPTION
02-8454-99
1" PVC, EPDM, 304SS, VAN STONE
02-8455-99
  1" CPVC, TEFLON, 304SS, VAN STONE
04-8454-99   1-1/2" PVC, EPDM, 304SS, VAN STONE
04-8455-99 1-1/2" CPVC, TEFLON, 304SS, VAN STONE
08-8454-99
2" PVC, EPDM, 304SS, VAN STONE
08-8455-99
2" CPVC, TEFLON, 304SS, VAN STONE

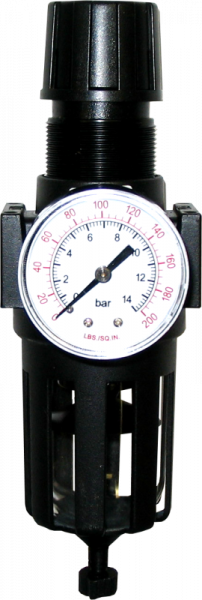

Filter / Regulators

Filter / Regulators by Master Pneumatics help provide clean air to your "lube free" AODD pump for extended life! The regulator allows you to control the speed of your AODD pump. Each unit includes a pressure gauge. For use with lube-free air center sections. Wall mount bracket sold separately.

PART #
AODD PUMP SIZE BRACKET
CFR10M-2
1/4" TO 1/2"
A33-82
CFR60-3 3/4" TO 1"
K60R-15
CFR60-4 1-1/4" TO 1" K60R-15
CFR100-6 2" TO 4"
K37-71

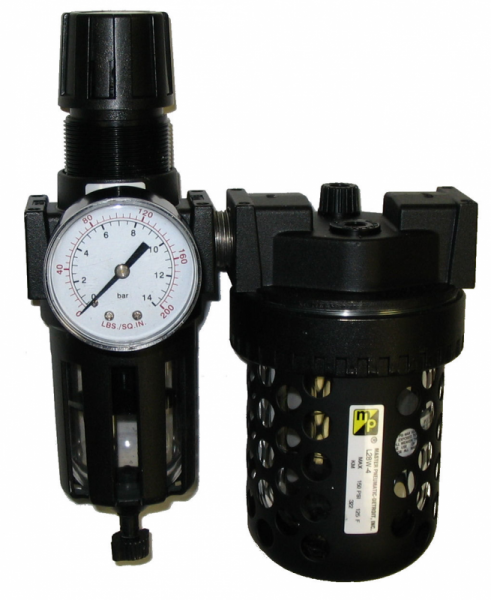

Filter / Regulator / Lubricators

Filter / Regulator / Lubricator combo units by Master Pneumatics help provide clean air to your "lubed style" AODD pump for extended life!  The regulator allows you to control the speed of your AODD pump.  Each unit includes a pressure gauge.  For use with air center sections that require lubrication.  Wall mount bracket sold separately.

  PART #
    AODD PUMP SIZE BRACKET
CFRL10-2
1/4" TO 1/2"
A33-82
 CFRL68W-3 3/4" TO 1"
K60R-15
CFRL68W-4 1-1/4" TO 1" K60R-15
CFRL108W-6 2" TO 4"
 K37-71

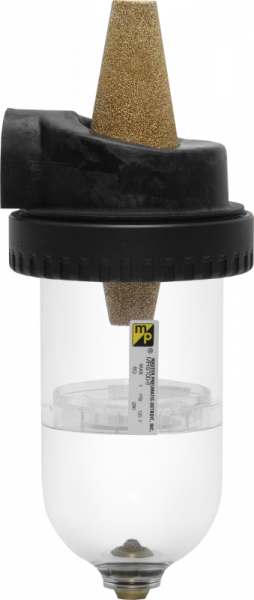

Silencer / Reclassifiers

Silencer / Reclassifiers by Master Pneumatics help provide quite the operation of your AODD pump. They also provide the ability to contain lubricants during normal operation or process fluid from a diaphragm failure.

PART #
AODD PUMP SIZE
RS100-4
1/2" TO 1"
MRS100-6 1-1/2" to 4"

Additional Accessories


SPILLSTOP™ LEAK
CONTAINMENT SYSTEM
PULSATION DAMPENERS &
INLET STABILIZERS 		LEVEL CONTROLS

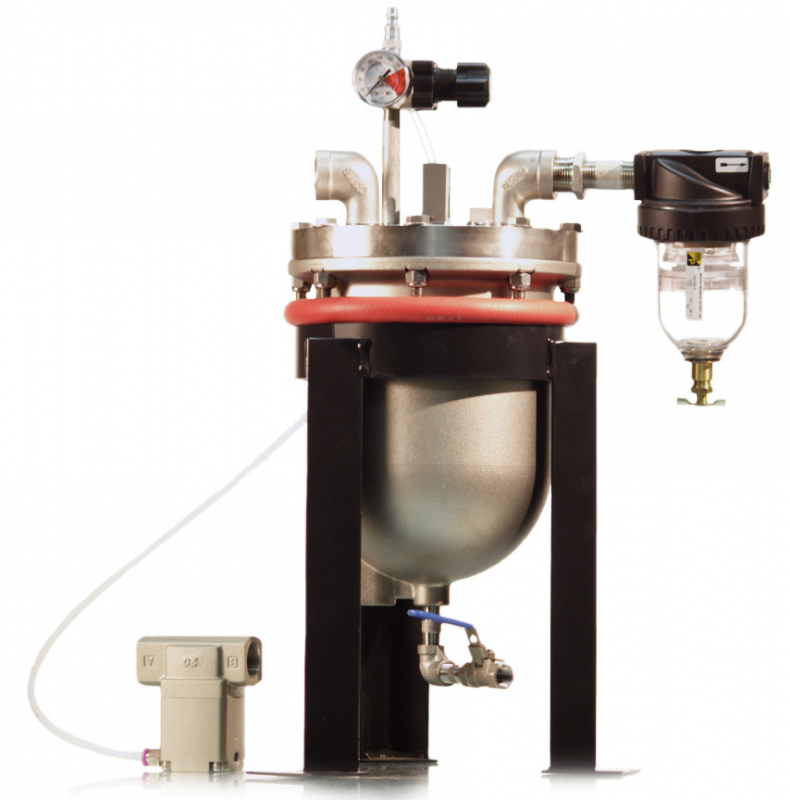

Blacoh's SPILLSTOP™ leak containment system provides ultimate protection for diaphragm failure.

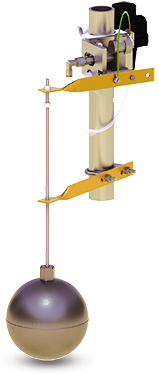

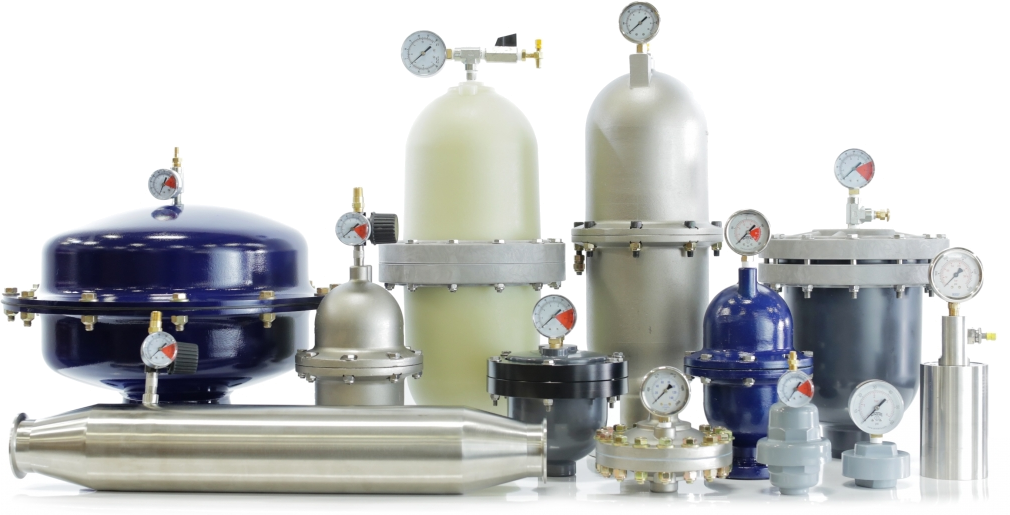

Blacoh offers a wide variety of pulsation dampeners and inlet stabilizers to reduce the pulsation caused by AODD pumps. Protect your pump and piping today! Sandpiper offers an all-pneumatic level control system for your AODD pump.
