AMPS Automatic Mechanical Packing System

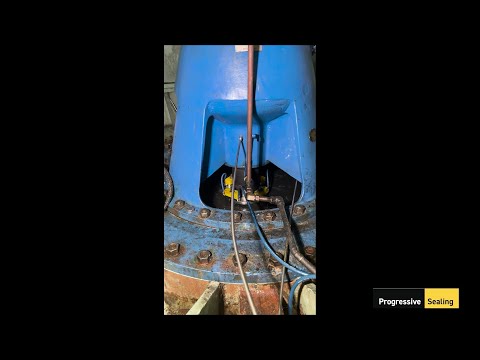

Maximize Performance with AMPS™ Active Loading Technology The AMPS (Automatic Mechanical Packing System) unit automatically keeps a constant force on the braided packing rings at all times, so your essential piece of rotating equipment remains in service. This process, known as Active Loading, maintains a uniform and consistent load that eliminates the need for manual packing adjustments, maximizes performance, and increases packing life.
The AMPS System consists of two components that work together to automatically and efficiently seal braided packing in packed rotating equipment.
Specifications
| Actuator Stud Range | 0.250" - 1.500" |
| Actuator Travel Range | 0.312" - 2.000" |
| Maximum Pneumatic Pressure | 300 PSI |
| Regulator Pressure Range | 6 - 250 PSI |
| Temperature Range of Actuator | -14°F - 400°F |
Options & Accessories
1830 SSP Slurry Pump Packing
Designed with a hybrid yarn and combining advanced, expanded, graphite PTFE yarn with carbon yarn reinforcement.
More Info
More Info
DualPac® 2211 Severe Service Slurry Packing
Chesterton® DualPac 2211 is built to address these issues by combining two complimentary materials in one packing. Using our patented braiding technology graphite filled ePTFE can be placed...
More Info
More Info
DualPac® 2212 High Performance Packing
Chesterton® DualPac 2212 is created using our patented DualPac Technology, which combines a burn-resistant material on the packing’s shaft side with a highly resilient ou...
