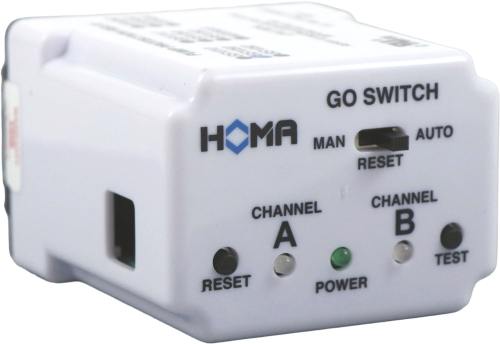

HOMA GS1050

GO Switch Moisture & Temperature Relay

The GO switch pump protection and monitoring modules are designed to provide a low-cost, flexible solution for protecting HOMA submersible sewage pumps against thermal and seal-failure conditions. Separate LED indication and relay contact outputs for each function are included. Flexible model options enable protection of any submersible sewage pump with heat sensor and/or seal-failure sensing devices installed. The GO Switch may be powered by 24 or
240 VAC, 50/60 Hz with no modifications. Standard models are available for monitoring via resistance probes, seal-failure float switches, Klixon thermal switches, RTDs and thermistors. Custom modules may also be factory configured.

For additional information: Manufacturer's Website open_in_new

Specifications

MonitoringMoisture and Temperature
Mounting12 Pin Plug (Base Included)
Supply Voltage24-240 VAC, 50-60 Hz. / 24-48 VDC
